ECOLASER - 3015 ECOLASER SERIES

ECOLASER

Features

  • Higher reliability achieved from table structure
  • Higher accuracy than plasma cutting
  • Higher speed than Punching process
  • Easy operation, friendly interface
  • Lower power consumption than CO2 laser
  • Low cost for after-cutting process,almost 0.
  • Lower noise and less dust
  • Lower danger to workers
  • Options for inventory and job report
Request a quote

technical parameter

Model

ECOLASER

Power supply

3P/380V/50HZ or Customized

Effective Cutting width (mm)

1500

Effective Cutting length(mm)

3000

Laser resonator

1KW to 4KW

Max position speed

80m/min

Position accuracy

±0.05mm/m

Repeated accuracy

0.03mm/m

Max loading weight

2*700KG (1500x3000 size)

Machine Weight

6500KG (1500x3000 size)

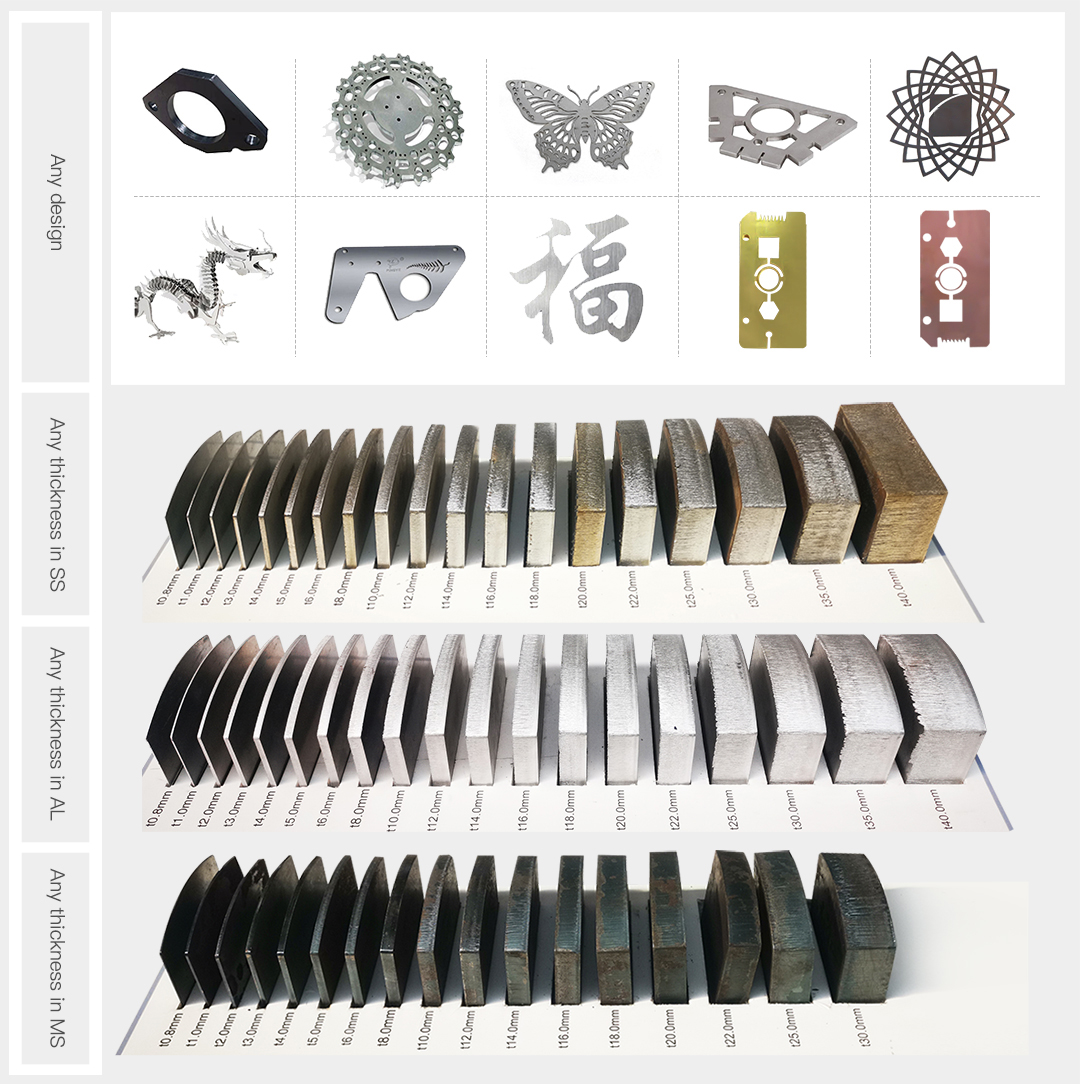

■CUTTING EFFECT

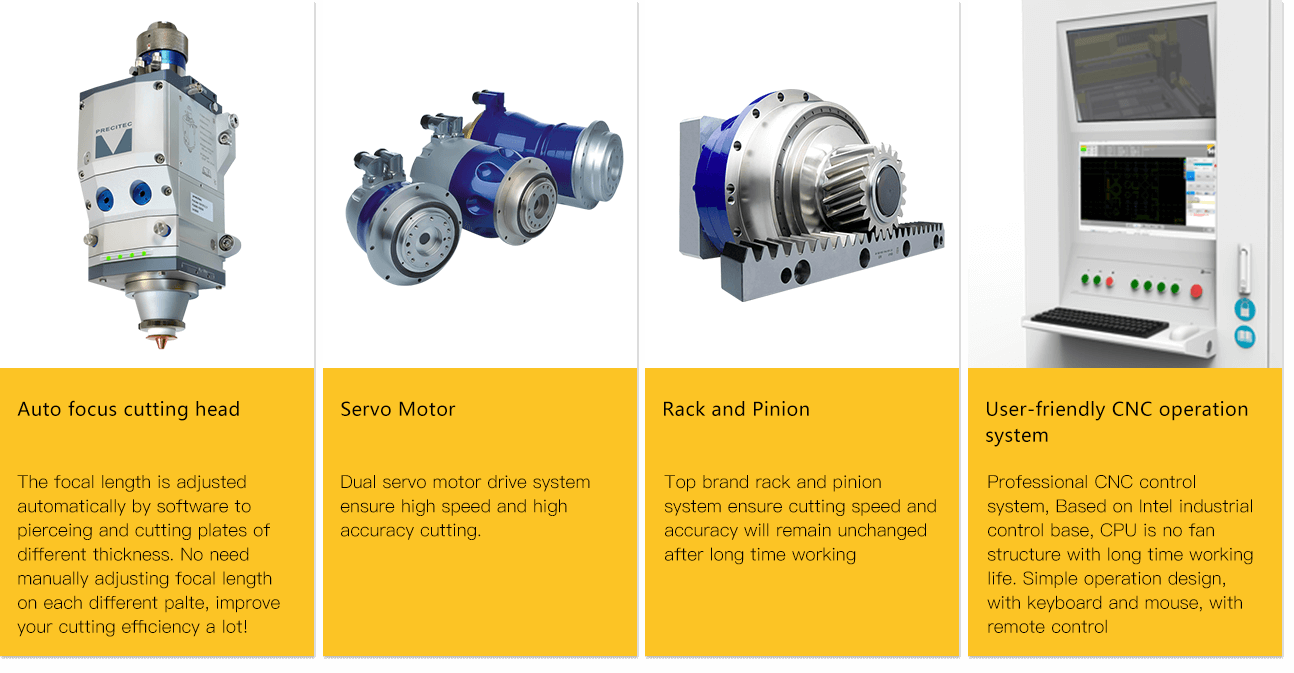

■Top brand key components, Excellent quality

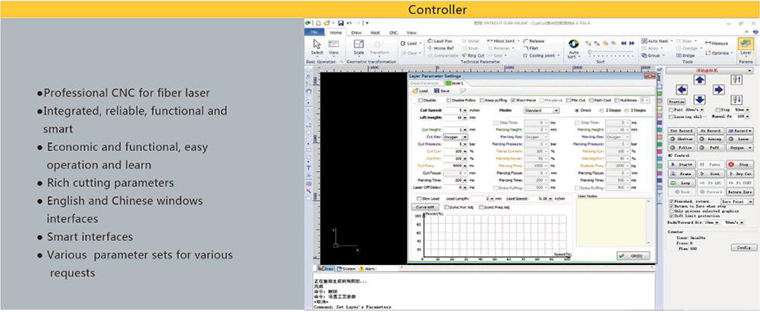

■CNC
