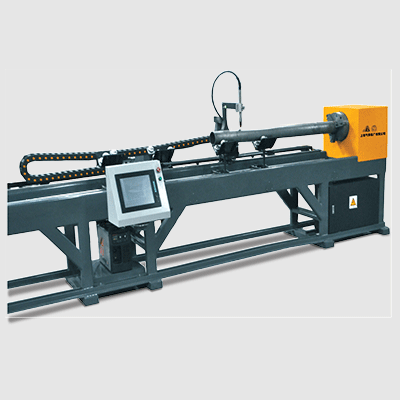

ECONOPIPE CNC pipe intersection equipment

CNC pipe intersection cutting machines

WANT A QUOTE? call OUR TEAM TODAY ON +8618057763376 Phone Icon

Features

A professional and economic pipe cutter
Easy installation
Strong steel structure
Friendly interface, easy operation
Supply with easy and economic software
Flame and Plasma options
Portable machine, good for contract based production
FreePIPE functions
Input existing drawings
Modify drawings easily
Optimize drawing details
Generate G-codes

Request a quote

Download Datasheet

Product Details

■ technical parameter

Model	ECONOPIPE
Cutting process	Plasma, Flame
Input voltage(V,Hz)	110/220/230/240, 220/380/400/415,50/60
Pipe diameter(mm)	60-315
Pipe length(mm)	3000, 6000
Loading capacity(mm,Kg)	3000mm length: Thickness:15, Weight:500
CNC controller	HST823
Axis	3 axis
Motor	Servo motor
Positioning accuracy(mm)	±0.5/1000
Repeating accuracy(mm)	±0.2/1000
Positioning speed(mm/min)	6,000
Plasma power source	Hypertherm: Powermax 45,65,85,105,125
Flame cutting gas	Acetylene, Propane, LPG - O2
Nesting software	Free pipe

■Working process

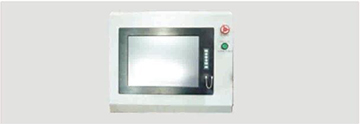

■Controller

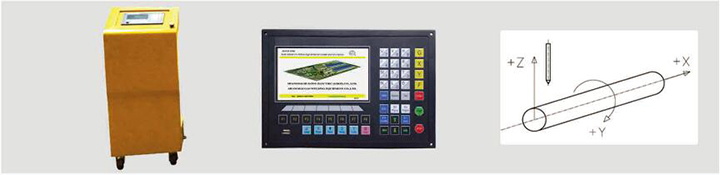

■OPTION:HST822,TOUCH SCREEN

■FreePIPE software

■Machanical parts

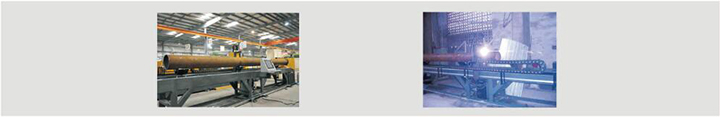

■Machine at sites
