HSTCUT Heacy CNC flame and plasma cutting machines

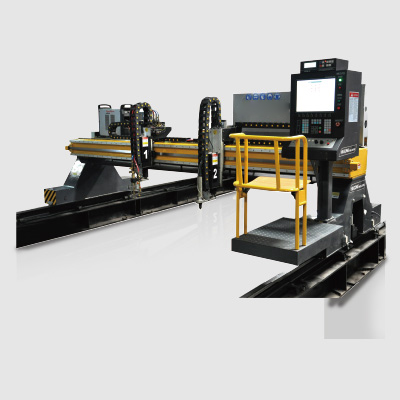

Heavy CNC flame and plasma cutting machines

WANT A QUOTE? call OUR TEAM TODAY ON +8618057763376 Phone Icon

Features

CNC controller: American, European and Hugong brand options
Automatic THC: Hypertherm and Hugong brand options
Servo motor: Panasonic
Gear box: Germany brand NEUGART
Linear rail: TBI or HIWIN
Relay: Omron
Breaker: Schneider
Nesting software options
Australian: FastCAM PRO
American: Hypertherm Pronest LTS
American: Hypertherm ProNest LTS
American: SigmaNest

Request a quote

Download Datasheet

Product Details

■ technical parameter

Model	HSTCUT
Cutting model	Plasma, Flame
Input voltage(V,Hz)	110/220/230/240, 220/380/400/415,50/60
Rail width(mm)	3000-6000
Effective cutting width	800mm less than rail width(2 CNC torches)
Rail length(mm)	Customer's requirement, 8000/12000/16000
Effective cutting length	2000mm less than rail length
CNC controller	15”/17”colorful monitor, USB port
CNC torches	1-4 sets
Positioning accuracy(mm)	±0.5/1000
Repeating accuracy(mm)	±0.2/1000
Positioning speed(mm/min)	12,000
Flame cutting gas	Acetylene, Propane, LPG
Flame cutting thickness(mm)	5-150
Flame cutting speed(mm/min)	50-750
Plasma cutting thickness	Due to plasma unit
Plasma cutting speed	Due to plasma unit
Compatible plasma unit	Hypertherm: Powermax Series,HSD,Maxpro,HPRXD Victor: Cutmaster Series, AUTOCUT200/300

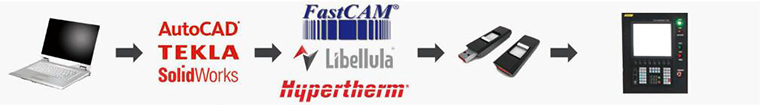

■Working process

<
