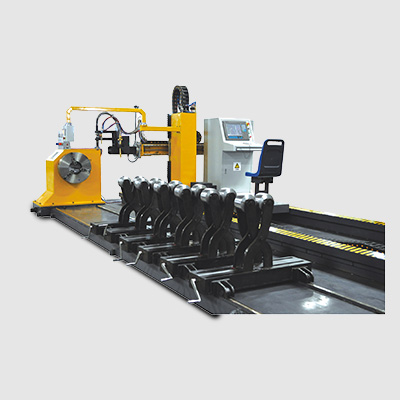

HSTPIPE-Ⅳ, Ⅴ, Ⅵ CNC pipe intersection equipment

CNC pipe intersection cutting machines

Features

  • A professional and economic pipe cutter
  • Easy installation
  • Strong steel structure
  • Friendly interface, easy operation
  • Supply with easy and economic software
  • Flame and Plasma options
  • Portable machine, good for contract based production
  • FreePIPE functions
  • Input existing drawings
  • Modify drawings easily
  • Optimize drawing details
Request a quote

technical parameter

Model HSTPIPE-Ⅳ Ⅴ
Cutting process Plasma, Flame
Input voltage(V,Hz) 110/220/230/240, 220/380/400/415,50/60
Pipe diameter(mm) 60-1200
Pipe length(mm) 3000, 6000, 12000, 20000
CNC controller HST812
Axis 4, or 5, or 6
Motor Servo motor
Positioning accuracy(mm) ±0.5/1000
Repeating accuracy(mm) ±0.2/1000
Positioning speed(mm/min) 6,000
Plasma power source Hypertherm: MAXPRO200, HPR260,XPR300,HPR400
Flame cutting gas Acetylene, Propane, LPG - O2

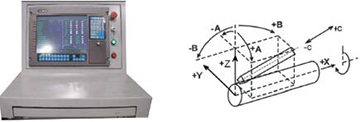

■Controller: HST812, English and Chinese

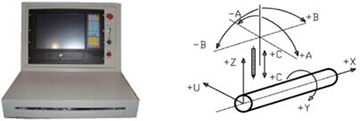

■Option for 6 axis

■Design built-in controller

■Mechanical parts
